TBM-110 Transceiver Module
TBM-110 Transmission Module
Introduction
Specification
Introduction

TBM-110 is a transceiver module, complies with LoRaWAN™ standards, has both advantage of both low power consumption and long range. The advanced  command interface promises rapid development for many IoT motes, smart water meter, smart gas meter, smart smoke detector, etc.

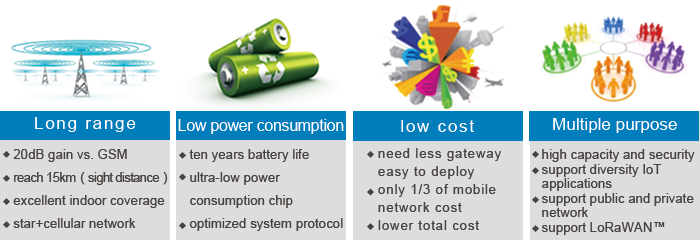

Major advantages:


Typical applications:

Specification


RF Parameters

 Operating Frequency

 433 MHz/470 MHz/780 MHz/868 MHz/920 MHz

 Channel Bandwidth

 62.5 KHz/125 KHz/250 KHz/500 KHz

 Transmit Power

 17 dBm

   Receive Sensitivity

   -132 dBm( 290bps)

 Transmission Distance

 15 Km ( sight distance)

 Data Rate

 290~3125 bps ( 125 KHz)

 Standards and Functions

 Wireless Standard

 LoRaWAN™,Class A

 Encryption

 AES128

 Software Functions

 Watch Dog

 Support

 Low-power Sleep mode

 Support

 Local Parameter configuration

 Support (UART)

 Physical Parameters

 Operating Voltage

 2.1~ 3.6 VDC

   Operating Current

   120 mA@17 dBm

 Receiver Current

 16 mA

 Sleep Current

  2 uA

 Operating Temperature

 -30℃ ~ 85℃

 Operating Humidity

 < 95%

 Size

 23 mm*20 mm *3.3 mm

 Weight

 2.2 g
